Showcase Home » Yamaha » Apex XTX
Model Quick Search

$14,399.00

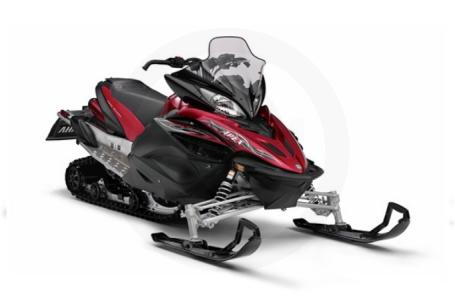

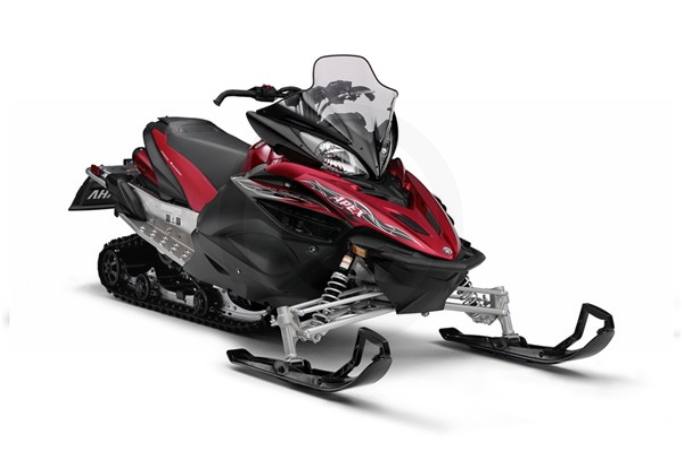

2011 Yamaha Apex XTX
Request a Quote Financing Calculator
Request a Quote Financing Calculator
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Check-out our entire line of four-stroke, performance snowmobiles. Unmatched for quality, reliability and fuel-efficiency.


New! Top Performance 4-stroke. A premium sled to bridge the gaps. Track: 15” X 144” X 1.25”


The Apex XTX delivers top cross country performance and handling with the light-weight steering of EPS.

    Performance
    • Top Performance 4-cylinder Genesis 4-Stroke engine
    • Airbox/intake
    • Injector
    • EXUP and new exhaust pipe
    • 15 x 144 x 1.25” Rip Saw track
    • Engine Braking Reduction System
    Handling
    • Electric Power Steering
    • Ski
    • New geometry
    • Rigid steering gate
    • Hooked handlebars
    • Short exhaust system
    Comfort
    • Dual Shock CK 144
    • New seat
    • New windshield
    • Dual DC outlets
    • HPG front shocks
    • Clicker rear shock
    • Concentrated hand warmers
    Engine
    • Type: Four-stroke
    • Displacement: 998cc
    • Cylinders: Four
    • Cooling: Liquid
    • Bore & Stroke: 74.0 X 58.0 mm
    • Intake Design: 3 Valves
    • Ignition: Digital TCI w/throttle position sensor
    • Fuel Delivery: 39 mm fuel injection
    • Exhaust: 2 valves, rear exhaust (Ti) with EXUP
    • Clutch/Transmission: YVXC, variable ratio, magnesium chaincase & cover, reverse
    • Disc. Brake Type: 4-piston hydraulic aluminum caliper w/lightweight ventilated disc, mechanical parking brake, adjust lever
    Chassis
    • Front Suspension: Independent, double wishbone
    • Front Shocks: 40 mm aluminum HPG
    • Front Travel: 9 in.
    • Ski Type: Lightweight plastic, saddleless design
    • Carbide Ski Runners: Standard
    • Stabilizer Bar: Standard
    • Rear Suspension: Dual Shock CK 144
    • Rear Shocks: 40mm, 12.5mm rod, HPG, aluminum / 40mm, 12.5mm rod, HPG, piggyback clicker, compression damping adjuster, aluminum
    • Rear Travel: 14.5 in.
    • Track Type: Camoplast® Rip Saw™
    Dimensions
    • Overall Length: 118.1 in.
    • Overall Height: 47.6 in.
    • Track/Width x Length x Height: 15 in. X 144 in. X 1.25 in.
    • Ski Stance (ctr. to ctr.): 48.4 in.
    • Fuel Capacity: 9.2 gal.
    • Fuel Type: Regular Unleaded
    • Oil Capacity: 3 qts., Dry Sump
    • Engine Oil Type: Yamalube 4, 0w-30, Cold Weather Formula
    Features
    • Electric Start: Standard
    • Reverse: Standard
    • Hand & Thumb Warmers: Standard, 9 position adjustable, independent control
    • Windshield Height: Medium
    • Mirrors: Optional
    • Seating Capacity: One
    • Tunnel Protectors: Standard
    • Headlight Watts, Type: 60/55W Halogen X 2
    • High Beam Indicator: Standard
    • Oil & Temp Light: Standard
    • Fuel Gauge Type: Electric (LCD), low fuel warning light
    • Speedometer: Standard (LCD digital)
    • Odometer: Standard (large LCD display)
    • Tripmeter: Standard, dual (large LCD display)
    • Tachometer: Standard, backlit (LCD)
    • DC Outlet: Automotive & RCA
    • Warranty: 1 Year (Limited Factory Warranty)

    Specifications

    Engine
    Engine Type Four-stroke
    Displacement 998cc
    Cylinders Four
    Bore x Stroke 74.0 X 58.0 mm
    Engine Cooling Liquid
    Carburetion 39 mm fuel injection
    Ignition Digital TCI w/throttle position sensor
    Exhaust 2 valves, rear exhaust (Ti) with EXUP
    Drivetrain
    Brake Type 4-piston hydraulic aluminum caliper w/lightweight ventilated disc
    Suspension
    Front Suspension Independent, double wishbone
    Front Travel 9 in.
    Rear Suspension Dual Shock CK 144
    Rear Travel 14.5 in.
    Ski Type Lightweight plastic, saddleless design
    Ski Stance 48.4 in.
    Track Type Camoplast® Rip Saw™
    Track Dimensions 15 in. X 144 in. X 1.25 in.
    General
    Speedometer Standard (LCD digital)
    Tachometer Standard, backlit (LCD)
    Odometer Standard (large LCD display)
    Fuel Capacity 9.2 gal.
    Color Candy Red, Yamaha Blue
    Warranty 1 Year (Limited Factory Warranty)
    Options
    Electric Start Standard
    Hand & Thumb Warmers Standard, 9 position adjustable, independent control
    Reverse Standard
    Mirrors Optional

    Compare Models

    		 Print








    Year 2011
    Manufacturer Yamaha
    Model Apex XTX
    Style Performance
    MSRP* $14,399.00
    Drivetrain
    Brake Type 4-piston hydraulic aluminum caliper w/lightweight ventilated disc
    Drive Clutch
    Driven Clutch
    Engine
    Engine Type Four-stroke
    Displacement 998cc
    Bore x Stroke 74.0 X 58.0 mm
    Cylinders Four
    Engine Cooling Liquid
    Carburetion 39 mm fuel injection
    Ignition Digital TCI w/throttle position sensor
    Exhaust 2 valves, rear exhaust (Ti) with EXUP
    Alternator
    General
    Speedometer Standard (LCD digital)
    Tachometer Standard, backlit (LCD)
    Odometer Standard (large LCD display)
    Headlight
    Fuel Capacity 9.2 gal.
    Dry Weight
    Windshield
    Color Candy Red, Yamaha Blue
    Warranty 1 Year (Limited Factory Warranty)
    Options
    Electric Start Standard
    Hand & Thumb Warmers Standard, 9 position adjustable, independent control
    Reverse Standard
    Mirrors Optional
    Suspension
    Front Suspension Independent, double wishbone
    Front Travel 9 in.
    Rear Suspension Dual Shock CK 144
    Rear Travel 14.5 in.
    Ski Type Lightweight plastic, saddleless design
    Ski Stance 48.4 in.
    Track Type Camoplast® Rip Saw™
    Track Dimensions 15 in. X 144 in. X 1.25 in.
